Fcuction |
|
| |

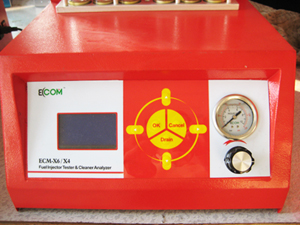

The LCD shows the working
situation of each procedure.
To test the injector dribbling, blocking, atomization, the injector angle as well as the amount and uniformity at the different running speed.
It adopts to united design of microcomputer skill and intelligent engine, and suppose driving power and specified injecting protection system, ensure to operate the test and clean at any mode such as high resistor, low resistor, electric voltage and electric current.
Equipped low liquid level and over-high liquid level.
With automatic testing liquid recycle system. |
|
| |
| Technical parameters |
| Power: |
85-132vac/170-264vac 47-63Hz |
| Ultrasonic wave frequency: |
38-39KHz |
| Ultrasonic wave power: |
100W |
| Rotate speed: |
0-9975r/min, step: 25r/min |
| Pulse width: |
0-30ms, step: 0.1ms |
| Count: |
0-9975r, step: 25r |
| Time: |
0-9975S, step: 5S |
| System pressure: |
0-6.2kg/c©O (variable regulated) |
| System flow: |
4L/min |
| Test cylinder: |
6 (max) |
| Working temperature: |
-10¡ãC-60¡ãC |
|
|
| |
|
|
| |
The small part of |
|
| |
|
|
| |
|
|
| |
|
|
|
|
