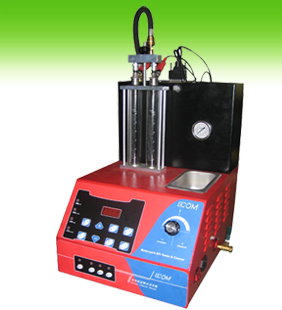

Specifications & Functions |
|
|
Can operate the auto static test, dynamic test and selective test
with the injecting dribbling,angles,atomization,uniformity of one or more(1-2) injectors,
can simulate any state of the vehicle to observe the complete process of
injectors.
Can operate automatically, reversely, and ultrasonic cleaning with one
or more injectors at different
state, such as high resistor, low
resistor, electric
voltage and electric current. If use new type injector, just need choose the matched connector and
replace the O-ring.
It adopts to united design of microcomputer skill and intelligent engine,
and suppose driving power and specified injecting protection system, ensure to
operate the test and clean at any mode such as high
resistor, low resistor,
electric voltage and electric current.
Have powerful, safe and time ultrasonic cleaning system. |
|
|
Technical parameters |
Dimensions: |
360mmx450mmx510mm |
Weight: |
20kg |
Power: |
85-132vac/170-264vac 47-63Hz |
Fuel tank capacity: |
2.5L |
Test tube capacity: |
120CC |
Ultrasonic wave power: |
100W |
Rotate speed: |
0-9975r/min, step: 25r/min |
Pulse width: |
0-30ms, step: 0.1ms |
Count: |
0-9975r, step: 25r |
Time: |
0-9975S, step: 5S |
System pressure: |
0-6.2kg/cİO (variable regulated£İ |
System flow: |
4L/min |
Test cylinder: |
2 (max) |
Ultrasonic wave frequency: |
38-39KHz |
|
|
|
