Functions |
|
| |
Adopt the Quick connectors imported from Germany, ensure the quality.
Adopt the dual-purpose oil board, to test the top feed connector and side feed connector.

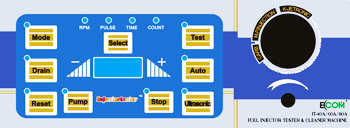

Adopt the LED backlight, brighter and save electricity.
The height of the ultrasonic cleaner is 110mm.
Drain valve.
Adopt high quality fuel pipe, not PVC pipe (Almost of the China manufacturer use PVC pipe).
The test liquid of the machine has Two grade filter, the first grade filter is at the entrance of the pump, the second grade filter is at the export of the pump.
Seamless welding stainless steel tank refuses corruption, hardening and oil-leaking.
Update the test procedures, the Pump work automacticly at the same time with the injector testing, and when the injector testing over, the pump also stop.
Auto-testing function.
Allocate top feed connector and side feed connector.
All have 4/6/8 cylinder to meet every market.
It is a high cost performance machine. The most attractive lightshot is that we adopt the side feed accessories( almost China manufacture only have the top feed accessories) |
|
| |
| Technical parameters |
| Power: |
85-132vac/170-264vac 47-63Hz |
| Ultrasonic wave frequency: |
38-39KHz |
| Ultrasonic wave power: |
100W |
| Rotate speed: |
0-9975r/min, step: 25r/min |
| Pulse width: |
0-30ms, step: 0.1ms |
| Count: |
0-9975r, step: 25r |
| Time: |
0-9975S, step: 5S |
| System pressure: |
0-6.2kg/c©O (variable regulated) |
| System flow: |
4L/min |
| Test cylinder: |
6 (max) |
| Working temperature: |
-10¡ãC-60¡ãC |
|
|
| |
The small part of: |
|
| |
|
|
| |
|
|
| |
|
|
|
|
