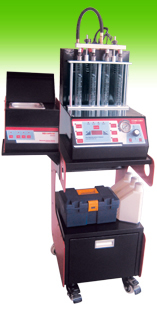

Functions |
|
| |
To test the injector dribbling, blocking, atomization, the injector angle as well as the amount and uniformity at the different running speed.
Simulate the engine accelerating or decelerating working state optionally.
It adopts to united design of microcomputer skill and intelligent engine, and suppose driving power and specified injecting protection system, ensure to operate the test and clean at any mode such as high resistor, low resistor, electric voltage and electric current.
Equipped low liquid level and over-high liquid level.
Connectors are suit for all kinds of fuel injector,Including standard Hose/Tail type, K type, TBI type.
Can test the fuel injector with shortest power cycle as well as the quality and difference.
With automatic testing liquid recycle system.
It uses environmental protective and safe test fluid and cleaning detergent, accords with Montreal Agreement, innocuous, with no peculiar smell, non-volatile and can be reclaimed repeatedly and effective, it¡¯s innocuous with the operator.
|
|
| |
| Technical parameters |
| Power: |
85-132vac/170-264vac 47-63Hz |
| Ultrasonic wave frequency: |
38-39KHz |
| Ultrasonic wave power: |
100W |
| Rotate speed: |
0-9975r/min, step: 25r/min |
| Pulse width: |
0-30ms, step: 0.1ms |
| Count: |
0-9975r, step: 25r |
| Time: |
0-9975S |
| System pressure: |
0-6.2kg/c©O (variable regulated) |
| System flow: |
4L/min |
| Test cylinder: |
4 (max) |
| Working temperature: |
-10¡ãC-60¡ãC |
|
|
| |
